High Speed Non Stop 25m/min Drywall Stud And Track Roll Forming Machine

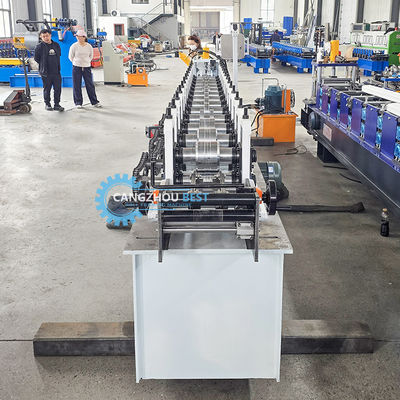

Grote Afbeelding : High Speed Non Stop 25m/min Drywall Stud And Track Roll Forming Machine

Productdetails:

Plaats van herkomst:	China, Hebei
Merknaam:	CHBEST
Certificering:	CE.ISO
Modelnummer:	Chbest-50

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1Set
Prijs:	USD+16000+SET
Verpakking Details:	Plastic film voor naakte machine
Levertijd:	20-35 dagen
Betalingscondities:	L/C, D/A, D/P, Western Union, MoneyGram
Levering vermogen:	15 sets/maand

Contact

High Speed Non Stop 25m/min Drywall Stud And Track Roll Forming Machine

beschrijving

Naam:	Dubbele lijnstudie & track stalen profiel koude rol vorm machine op maat gemaakte machine	Ponsentype:	Hydraulisch
Besturingssysteem:	PLC	Levensduur:	10
Garantie:	2 jaar	Type snijden:	vliegende zaag
Markeren:	high speed drywall stud roll forming machine , non-stop track roll forming machine , 25m/min stud and track former

Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine

Rollers

High quality rollers will help to produce the beautiful

and high quality profile.That will satisfy your

customers.Using high qualiy thick shaft,

the strength is more durable.

Machine body

The main body of the body without welding, all the use of cast steel, prevent the host body deformation.

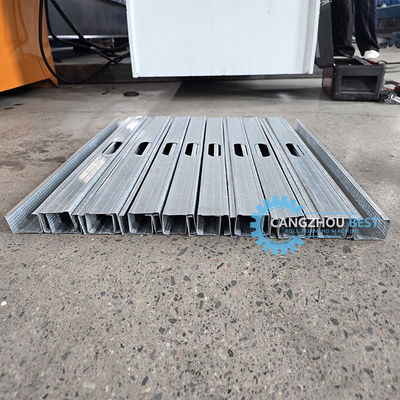

High Speed Non Stop 25m/min Drywall Stud And Track Roll Forming Machine 0

PLC Control System

Usually we prodvide the Delta PLC control system,

but we can make that according to your need.

Decoiler

Type	Manual type(standard)	Hydraulic type(option)
Width	500mm	600mm
Capacity	Max 5tons	From 5-15 tons
Inner diameter	φ450-550mm	φ450-550mm
Outer diameter	φ1500mm	φ1800mm

tem

Parameter detail

Processing Material

GI and PPGI

Material thickness

0.25-0.8mm

Machine frame

360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision

Machine siding panel

plate type	Pillar type(option)

Plate thickness:20mm	Pillar thickness:30mm
Painting:normal painting	painting:Chroming

Forming stations

12stations(according to the profiles)

Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft

φ70-80mm high garde No.45 steel after treatment,

Machine spacers

CNC lathing in high-precision

Machine bearings

China Haerbin bearing or SKF international bearing(option)

Driving system

1 inch chain or gear box(option)

Machine power

5.5kw-11kw(according to the profiles)

Machine working speed

8-12m/min or 10-30m/min(option)

Machine adjust type

After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Cutting

Type	Mould type
Blade material	Cr12mov quenching and grinding
Frame processing	the whole bottom frame is grinding for high-precision
Blade processing	wire-electrode cutting, but the upper balde can not be straight. this is technology
Working	Hydraulic type

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

Packing Detall
1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.
Packing Detall
3.electrics devices be packed with wooden box.for Standard export packing.
4. All Components Fixed by steel wire with Container.

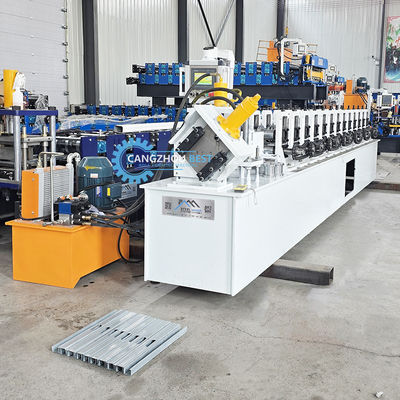

High Speed Non Stop 25m/min Drywall Stud And Track Roll Forming Machine 1
