High-Speed Drywall Metal Profile Steel Stud and Track Roll Forming Machine

Grote Afbeelding : High-Speed Drywall Metal Profile Steel Stud and Track Roll Forming Machine

Productdetails:

Plaats van herkomst:	China Hebei
Merknaam:	CHBEST
Certificering:	CE/BV/SGS
Modelnummer:	XY50x24

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 set
Prijs:	9500
Verpakking Details:	Plastic film voor naakte machine
Levertijd:	30-40 dagen
Levering vermogen:	20 sets/maand

Contact

High-Speed Drywall Metal Profile Steel Stud and Track Roll Forming Machine

beschrijving

Productnaam:	Lichtmeter stalen kiel gips metalen tap en trackrolvorming machine	Besturingssysteem:	PLC
Type snijden:	vliegende zaag	Garantie:	2 jaar
Levensduur:	10 jaar	Roller materiaal:	Cr12 Bew
asmateriaal:	45#staal
Markeren:	high-speed drywall metal stud machine , steel track roll forming machine , drywall profile roll forming machine

High-Speed Drywall Metal Profile Steel Stud and Track Roll Forming Machine

Light steel keel, it is a kind of new building materials, with the development of modernization construction.light steel keel is widely used in hotel ,terminal building,car depot,station,Amusement Park,mall,factory,office building,old building renovation, indoor decoration set,ceiling ,etc.

Light steel keel is with the features of lightweight, highstrength, waterproof,shockproof, dustproof,soundproof,sound absorption,constant temperature;also with advantages of short limit time and easy installation.

Working flow

Decoiler------feeding------roll forming-------cut to length-----output table

Profile Drawing

High-Speed Drywall Metal Profile Steel Stud and Track Roll Forming Machine 0

Machine Components

Name	Quantity(set)
De-coiler	1
Feeding guiding Device	1
Roll Forming Part	1
Hydraulic cutting Device	1
Computer control box	1
Hydraulic System	1
Run-out table	1

Parameter

Configurations	Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control.
Control System	PLC Panasonic Inverter
Main Frame	350mm H-Beam
Main Power	5.5 kw
Pump Power	3kw
Power Supply	3-Phase,380V,50Hz
Forming Speed	12-14m/min
Hydraulic Pressure	18-20MPa
Forming Size	80mm
Feeding Thickness	1.5-3.2mm
Roller Station	12 Stands
Roller Diameter	60mm
Backboard Thickness	16mm
Chain Size	66mm
Cutter Standard	Cr12
Roller Standard	Cr12
Cr-Plating Size	0.05mm
Overall Size	9500×1400×1350mm
Total Weight	6T

Working conditions
1.Machine size	10m x 1.2m (L XW)
2.Working size	20m x 2.5m (LXW)
3.Power supply	8.5kw
4.Frequency	50-60HZ
5.Wires/cables	4-6mm²(length according to workshop)
6. Labor cost	2 workers
7. Tools	Spanners and screwdriver
8.Lift device	3-5t forklift or crane

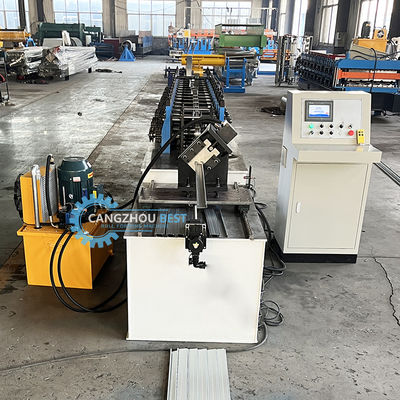

High-Speed Drywall Metal Profile Steel Stud and Track Roll Forming Machine 2

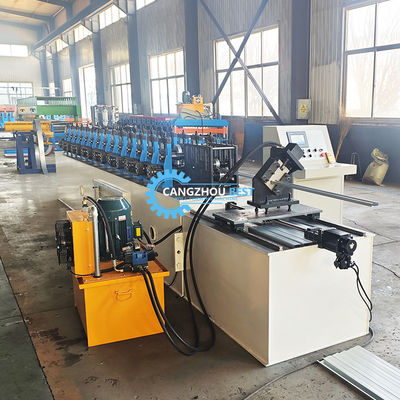

High-Speed Drywall Metal Profile Steel Stud and Track Roll Forming Machine 3

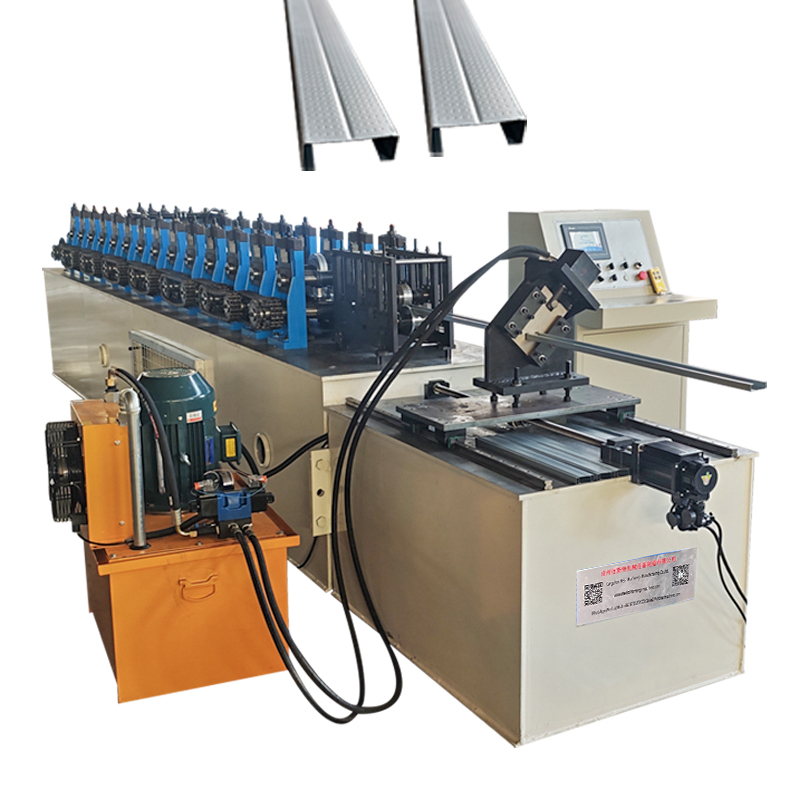

High-Speed Drywall Metal Profile Steel Stud and Track Roll Forming Machine 4
