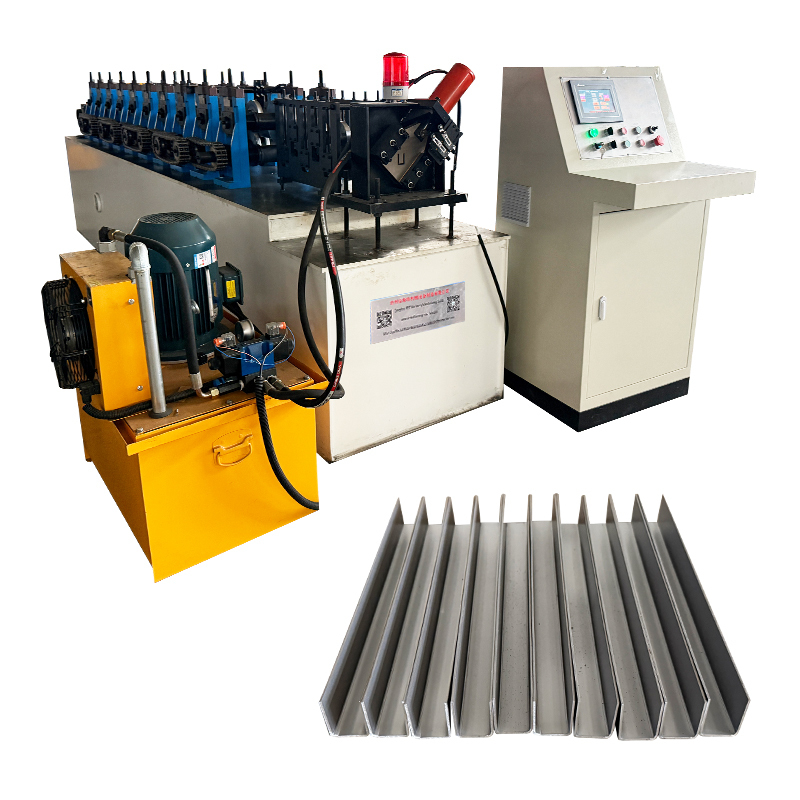

Hydraulic Cutting Mold Cutting Steel Profile U Truck Channel Roll Forming Machine
Work Flow
Decoiler------feeding------roll forming-------cut to length-----output table
Machine Component
| Decoiler |
1set |
| Roll Forming |
1set |
| Punching Device |
1set |
| Cutting Device |
1set |
| PLC Control Box |
1set |
| Hydraulic Pump |
1set |
| Output Table |
1set |

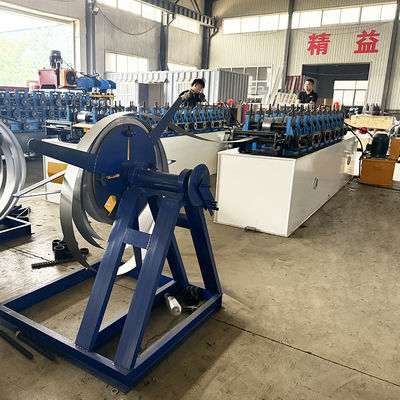

Decoiler
Max. Width: 500mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 3000 kgs
Type: Manual Or Hydraulic
Roll Forming Machine
Rolled Material: Cold Rolled Steel Sheet
Material Thickness: 0.8-1.2mm
Rollers: 10 Groups
Material for Rollers: Cr12 steel(quenching and Harding and chroming)
Frame panel thickness:casting frame
Bottom frame: 36# H-section steel
Motor Power: 3kw
Driven type: chain
Speed:10-15m/min
Diameter of shaft: 60mm
Material for shaft: 45# steel(quenching and Harding and chroming)
Hardness for Heat Treatment: HRC55 – 60

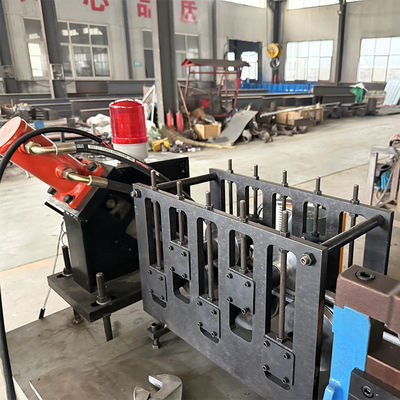

Cutting Device
|
Material for Cut-Off Modular
|
Cr12 steel
Hardness for Heat Treatment:HRC55 – 60
|
|
Cut-Off Type
|
Hydraulic, Automatic Cut-Off
|
|
Power
|
5.5kw |

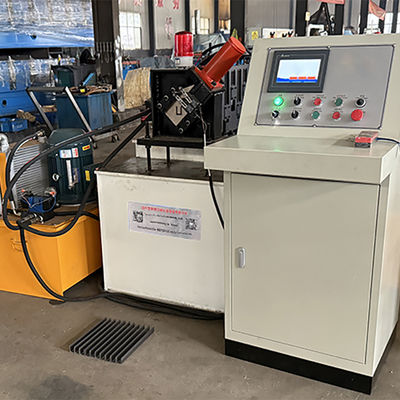

Control System
| Type |
PLC Frequency Control System with touch screen
|
|
PLC Brand
|
Delta |
|
Encoder Brand
|
Omron |
|
Length Error
|
±2mm |
|
Language
|
English and Chinese
|
Hydraulic Pump
Oil type: 46# hydraulic oil
Pump brand: China brand
Output Table
No power type
Length: 2m
Our Service
| Pre-Sales-Service |
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
|
| After-Sales-Service |
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
|
Packing Detall
1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.
3.electrics devices be packed with wooden box.for Standard export packing.
4. All Components Fixed by steel wire with Container.
